Years of Manufacture: 1962 - 1963

Number Produced: 6,113

Chassis Number Range: 17,551 - 25,314

Designer: Donald Healey

Back to All Austin Healey Models

Austin Healey BJ7 (3000 MK2) Original Colours

Back to BJ7

Please note that there were production inconsistencies during this period, so colours should be chosen on individual basis.

PAINT COLOUR INTERIOR TRIM COLOUR OPTIONS PIPING OPTIONS
Black Red Black
Ivory White Red, Black White
Colorado Red Red, Grey**, Black Black, Red
Healey Blue Blue White
Florida Green Grey** Green
British Racing Green Black Black
Metallic Golden Beige Red, Black TBC
Ivory White / Black Red, Black White
Colorado Red / Black Red, Grey**, Black Black, Red
Black / Colorado Red Red Black
Healey Blue / Ivory White Blue White
Florida Green / Ivory White Grey** Green

**Please note that the colour Austin Healey called “Grey” is actually an Off White / Doeskin shade with a hint of Grey**

Information from: Clausager, A. (1990) Original Austin Healey – The Restorer’s Guide to 100, 100-Six and 3000 – Bay View Books Ltd.


Austin Healey 3000 (MKII) BJ7 Original Colours supplied by John Skinner Ltd:

Main Trim Colour:



Piping Colour:

Colour names refer to internal John Skinner Ltd colour names, not the names Austin-Healey originally used for these colours.

Please request a sample for final colour confirmation as these images may be misleading.

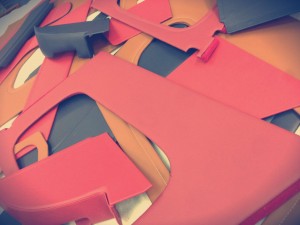

Austin Healey BJ7 Trim Panels

Trim Panel Kit

BJ7 Trim Panel Kit

Illustration Reference: 01 - 08

Materials: Leather, Vinyl, Hardboard, Metal

  • This kit includes all the main panels and re-trim kits for the Austin Healey 3000 (MK2) BJ7. Includes items 01 to 08 listed below.

Door Panels: Main & Inner

BJ7 Door Panels: Main & Inner

Illustration Reference: 01

Materials: Leather, Vinyl, Hardboard, Foam, Metal

  • Material covered Hardboard & Aluminium + 3mm Foam Door Panels.
  • Material covered Hardboard for Outer Door Panel.
  • Material covered Aluminium metal for Inner Door Panel. This includes the stitch lines “As Original”.
  • Includes pre-cut holes for fixings.

Door Top Re-Trim Kit

BJ7 Door Top Re-Trim Kit

Illustration Reference: 02

Materials: Leather, Vinyl

  • Pre-cut loose material for re-trimming your Door Top area.

Footwell Panels

BJ7 Footwell Panels

Illustration Reference: 04

Materials: Leather, Vinyl, Hardboard

  • Material covered Hardboard A Post Footwell Panels.
  • Includes pre-cut holes for fixings.

Quarter Panels

BJ7 Quarter Panels

Illustration Reference: 05

Materials: Leather, Vinyl, Hardboard, Metal

  • Material covered Hardboard + 3mm Foam Quarter / Wheelarch Cover Panels.
  • Includes fully trimmed metalwork on the front edge.
  • Includes pre-cut holes for fixings.

Dash Top Re-Trim Kit

BJ7 Dash Top Re-Trim Kit

Illustration Reference: 06

Materials: Leather, Vinyl

  • Pre-cut loose materials & 3mm Foam for re-trimming your Dash Top area.
  • Also includes pre-sewn piping for the left and right edges.

Dash Board Facia Re-Trim Kit

BJ7 Dash Board Facia Re-Trim Kit

Illustration Reference: 07

Materials: Leather, Vinyl

  • Pre-cut loose materials for re-trimming your Dash Facia Panel area.

Parcel Tray Re-Trim Kit

BJ7 Parcel Tray Re-Trim Kit

Illustration Reference: 08

Materials: Leather, Vinyl, Wool, Nylon, Karvel

  • Pre-cut & sewn materials for re-trimming the metal base of the under dash Parcel Tray area.
  • Also includes pre-cut and edged carpet to sit inside the tray area.

Dash Top Panel

BJ7 Dash Top Panel

Illustration Reference: 15

Materials: Leather, Vinyl, Foam, Metal, Plywood, Rubber

  • Pre-cut & Trimmed materials on new Plywood base for the Dash Top area.

Trim Panel Fixing Kit

BJ7 Trim Panel Fixing Kit

Illustration Reference: N/A

Materials: Metal

  • Fixing Clips used to attach your main Trim Panels to the bodywork of your car.

Austin Healey BJ7 Seat Covers & Hardware

Front Seat Cover Kit

BJ7 Front Seat Cover Kit

Illustration Reference: 10

Materials: Leather, Vinyl

  • Fully Sewn materials covers for Re-Trimming the Front Seat Cushions and Backrests.
  • Includes loose material for the Seat Frame Surrounds.

Front Seat Foam Paddings

BJ7 Front Seat Foam Paddings

Illustration Reference: N/A

Materials: Foam

  • Moulded Foam for the Front Seat Cushions and Backrests.

Front Seat Cushion Pans

BJ7 Front Seat Cushion Pans

Illustration Reference: N/A

Materials: Metal

  • Metalwork for the Front Seat Cushion Pan.

Front Seat Locating Frames

BJ7 Front Seat Locating Frames

Illustration Reference: N/A

Materials: Metal

  • Metal Locating Frames for the Front Seat Cushion Pans.

Front Seat Backrest Frame

BJ7 Front Seat Backrest Frame

Illustration Reference: N/A

Materials: Metal

  • Metal Frame work for the Front Seat Backrests.

Front Seat Tacking Strips

BJ7 Front Seat Tacking Strips

Illustration Reference: N/A

Materials: Plywood

  • Pre-cut Plywood kit, used in “tacking” your Seat Covers to your Seat Frame.

Centre Cushion Armrest Kit

BJ7 Centre Cushion Armrest Kit

Illustration Reference: 12

Materials: Leather, Vinyl, Foam, Scrim

  • Fully Sewn Leather & Vinyl Materials for Re-Trimming the Gearbox Tunnel Centre Cushion Armrest section.
  • Includes 1″ Foam Inner Padding, and scrim for attaching to the carpet.

Rear Seat Cover Kit

BJ7 Rear Seat Cover Kit

Illustration Reference: 11

Materials: Leather, Vinyl

  • Fully Sewn materials covers for Re-Trimming the Rear Seat Cushion “D’s” and Backrest Panel.

Rear Seat Backrest Woodwork

BJ7 Rear Seat Backrest Woodwork

Illustration Reference: 17

Materials: Plywood

  • Pre-cut Plywood for the Rear Seat Backrest.

Rear Seat Cushion Pans

BJ7 Rear Seat Cushion Pans

Illustration Reference: N/A

Materials: Metal

  • Rear Seat Cushion Metal Pans.

Seat Wadding Kit

BJ7 Seat Wadding Kit

Illustration Reference: N/A

Materials: Foam

  • Used to “pad out” small areas of the Seat Covers that the Foams cannot fill, for best results.

Seat Clips

BJ7 Seat Clips

Illustration Reference: N/A

Materials: Metal

  • “U” Shaped Black Seat Clips, to help Re-Trimming your Seat Covers.

Austin Healey BJ7 Carpets & Flooring

Carpet Set

BJ7 Carpet Set

Illustration Reference: 13

Materials: Vinyl, Wool, Nylon, Karvel

  • Pre-cut, and edged with Binding, Carpet pieces for the main cockpit of your car.
  • Binding / Edging to original specification.
  • Includes “Austin of England” Heelpads on both the Front Floor carpets.

Underfelt Kit

BJ7 Underfelt Kit

Illustration Reference: 13

Materials: Felt

  • Pre-cut Felt Sound Proofing for under the carpets.
  • Suitable for the Side Change / Shift Gearbox. Note this Gearbox is relevant to models before chassis number 15,880.

Boot Liner Re-Trim Kit

BJ7 Boot Liner Re-Trim Kit

Illustration Reference: 14

Materials: Wool, Nylon, Armacord, Millboard, Karvel

  • Pre-cut, and edged with Binding, material pieces for the Boot / Trunk area of your car.
  • Ribbed Armacord is Original for the Austin Healey Boot / Trunk areas.
  • Binding / Edging to original specification.
  • Includes pre-cut and creased Millboard Panel for covering the Petrol Filler Neck.

Carpet Fixing Kit

BJ7 Carpet Fixing Kit

Illustration Reference: N/A

Materials: Metal

  • Fixing clips used to attach your Carpet Set to the bodywork of your car.
